Plastics shredder

Date:2016-05-13/ Auxiliary Equipment/ Chat online/ Give me a price

Factory direct sale contact number

Chat Online

Leave a Message

Features
Technical Data
Application

For our plastics continuous pyrolysis plant, it needs to shred plastics into less than 50mm granules. To help our clients to continuously use our pyrolysis plant, we also offer plastics shredder. Plastics shredder can help our customer to crush all kinds of plastics into granules, for example, thin film/diaphragm film/membrane/bottles//electrical appliances insulation,galvanic isolation materials//reticule/water pipes/oil tank,oil drum/drink bottle/calcium feeding-bottle/ milk bottle/staple etc

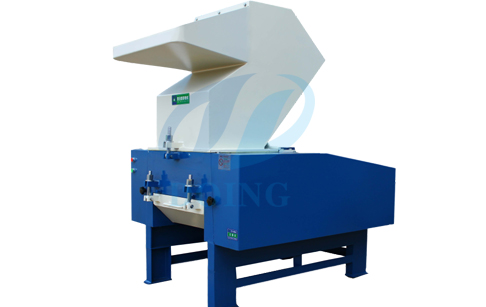

Plastic shreder of continuous waste plastic pyrolysis plant

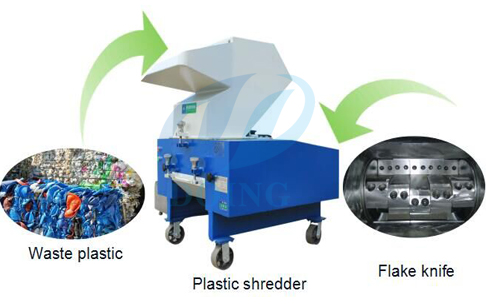

Working process of plastic shredder of continuous waste plastic pyrolysis plant

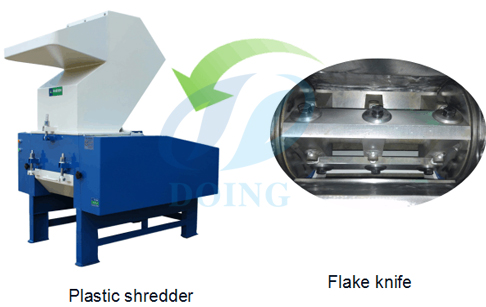

Flake knife type high speed shredder for continuous waste plastic pyrolysis plant

Claw knife type high speed shredder for continuous waste plastic pyrolysis plant

1: Flake knife type high speed shredder for continuosu waste plastic pyrolysis plant

No.	Model number	Motor/power	Crushing ability(kg/h)	Crushing chamber(MM)	Cutter frame	Cutter number
1	DY-3F	3HP/2.2KW	70-100	180×160	3PCS	fixed：2PCS rotary：3PCS
2	DY-5F	5HP/4KW	100-150	290×220	4PCS	fixed：2PCS rotary：6PCS
3	DY-7.5F	7.5HP/5.5KW	120-200	400×250	6PCS	fixed：2PCS rotary：6PCS
4	DY-10F	10HP/7.5KW	150-250	400×250	6PCS	fixed：2PCS rotary：6PCS
5	DY-15F	15HP/11KW	250-350	460×300	6PCS	fixed：2PCS rotary：6PCS
6	DY-20F	20HP/15KW	350-450	515×330	6PCS	fixed：2PCS rotary：6PCS
7	DY-30F	30HP/22KW	450-600	550×400	6PCS	fixed：2PCS rotary：6PCS
8	DY-50F	50HP/37KW	600-800	720×500	9PCS	fixed：2PCS rotary：9PCS
9	DY-75F	75HP/55KW	800-950	940×630	9PCS	fixed：4PCS rotary：9PCS
10	DY-100F	100HP/75KW	950-1100	1100×630	9PCS	fixed：4PCS rotary：9PCS

2:Claw knife type high speed shredder for fully continuous pyrolysis plant

No.	Model number	Motor/power	Crushing ability(kg/h)	Crushing chamber(mm)	Cutter frame	Cutter quantity
1	DY-3C	3HP/2.2KW	70-100	180×160	3PCS	fixed：2PCS rotary：9PCS
2	DY-5C	5HP/4KW	100-150	290×220	5PCS	fixed：2PCS rotary：15PCS
3	DY-7.5C	7.5HP/5.5KW	120-200	400×250	7PCS	fixed：2PCS rotary：21PCS
4	DY-10C	10HP/7.5KW	150-250	400×250	7PCS	fixed：2PCS rotary：21PCS
5	DY-15C	15HP/11KW	250-350	460×300	8PCS	fixed：2PCS rotary：24PCS
6	DY-20C	20HP/15KW	350-450	515×330	9PCS	fixed：2PCS rotary：27PCS
7	DY-30C	30HP/22KW	450-600	550×400	10PCS	fixed：2PCS rotary：30PCS
8	DY-50C	50HP/37KW	600-800	720×500	9PCS	fixed：2PCS rotary：27PCS
9	DY-75C	75HP/55KW	800-950	940×630	12PCS	fixed：4PCS rotary：36PCS
10	DY-100C	100HP/75KW	950-1100	1100×630	14PCS	fixed：4PCS rotary：42PCS
