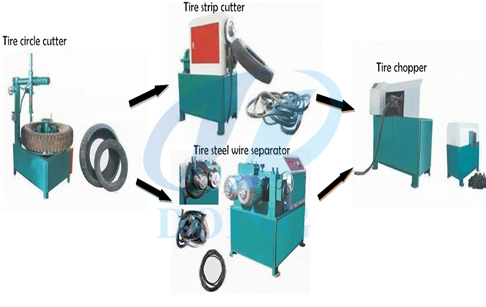

Combination tire cutter is mainly consisting of five parts: tire ring cutter, tire strip cutter, steel wire separator, tire block cutter and rubber powder production equipment. The final purpose is to cut big whole tires into 3-5cm size small pieces.

Combination tire cutter

(1) Tire ring cutter is used for cutting the tire steel wire circle (two tire sidewalls) from tire body for further processing;

Technical Parameters of Tire ring cutter
Motor Power	3kw
Capacity(kg/h)	300-500kg/h
Rotation speed	15r/min
Dimension	120014001300
Weight	600kg
Tire processing size	650-1200mm

(2) Tire strip cutter is used for cutting the tire body to tire strips for tire block cutter;

Technical Parameters of Tire ring cutter
Motor Power	3kw
Capacity(kg/h)	300-500kg/h
Rotation speed	15r/min
Dimension	120014001300
Weight	600kg
Tire processing size	650-1200mm

(3) Tire steel wire separator is used for separating the steel wire from the tire sidewalls;

Technical Parameters of Tire steel wire separator
Capacity	65 tires/hour
Motor power	15kw
Rotation speed	1440r/min
Machine weight	1300kg
Dimension	15009001300mm(LWH)
