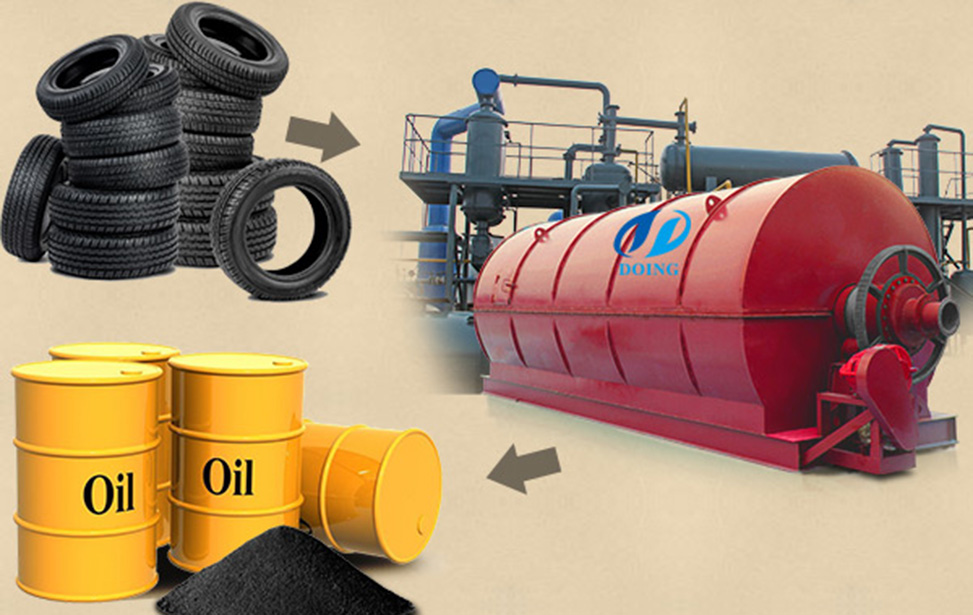

Used tire/plastic/rubber into black oil processing pyrolysis plant

1. Unique design of reactor guarantees the service life and safety.
2. No need to crush tires. We can feed whole tires into the reactor. Save manpower and increase efficiency.
3. Electric cabinet help you watch the temperature and easy to control power.
4. Technical condensers and circulating water guarantee the cooling effect and improve oil yield.
5. The residual gas (tail gas) recycles to furnace as fuel. Save energy.
6. Flue gas is processed by dust removal device. Reach the emission standard.
7. Experienced engineers will help you install the machine and train your workers.
Used tire/plastic/rubber into black oil processing pyrolysis plant has two important parts, reactor and condensers.
The reactor decides the whole machine’s service life. In the refining industry, when heating the reactor by fuel, the heating temperature can be up to 450—500 degree centigrade inside the reactor. Our 5th generation machines use the Q245R boiler steel plate as material, it stresses on the high temperature and high pressure resistant, and its melting point can reach to 800 degree centigrade, which can assure 6-8 year’s lives and it conform to the national standard.
Meanwhile, all machine parts are welded with auto-welding machine, pressure parts will be 100% X-ray detection, heat treatment and hydra press measurement, safety assurance.

Technical parameter of used tire/plastic/rubber into black oil processing pyrolysis plant
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste tire/plastic/rubber	Waste tire/plastic/rubber	Waste tire/plastic/rubber
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about used tire/plastic/rubber into black oil processing pyrolysis plant
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

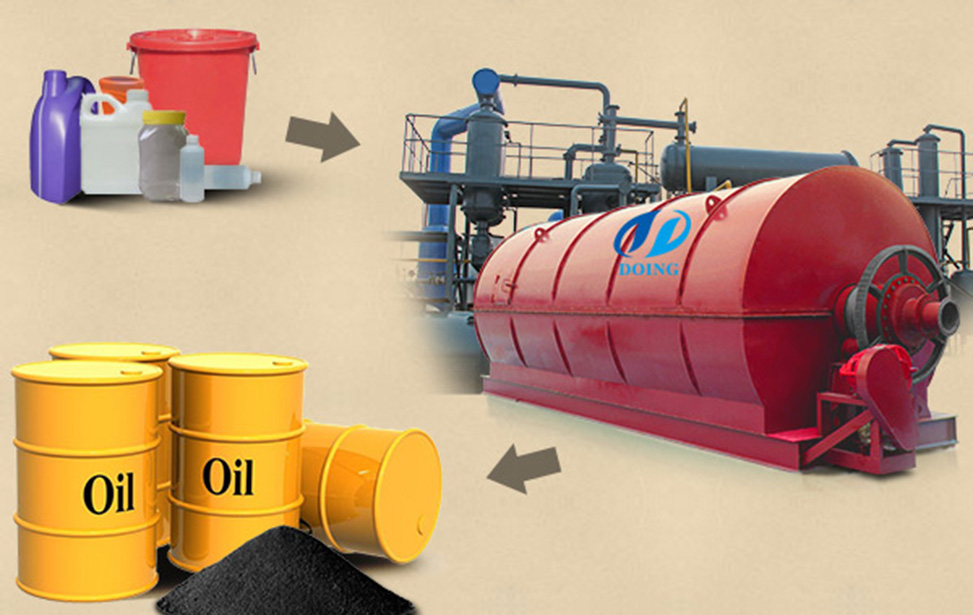

plastic oil application ,tyre oil application

Fuel oil application

Used tire/plastic/rubber into black oil processing pyrolysis plant technology unlocks the significant value of millions of used tires which require a massive amount of storage space, removing an environmental eye sore, and enabling the land to be used for higher value purposes with to dealing with waste plastic and waste tyres.
