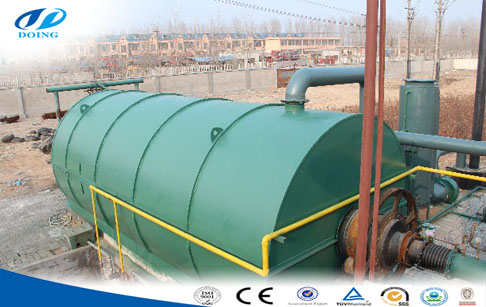

Waste tyres recycling plant cost

Waste tyres recycling plant cost
The energy crisis and environmental degradation are the main problems in the present days due to growing population and rapid industrialization. Around the world, there are initiatives to replace gasoline and diesel fuel due to the impact of fossil fuel crisis and hike in oil price. Millions of dollars are being invested in the search for alternative fuels. The scrap tire is one by which alternative fuel can be produced and also can be tested the properties of the fuel as well as the performance of the diesel engine by using the waste tyre recycling plant.
Waste tyres recycling plant can pyrolysis waste tyre ,waste plastic ,used oil and waste rubber,the outcome is crude oil and carbon black without pollution.

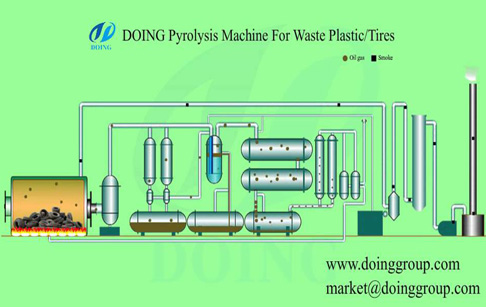

Waste tyres recycling plant with good oil prices working process:

Waste tyres recycling plant cost is processing waste tyres
1. Put raw materials into reactor by auto-feeder, then heat the reactor with any one of the following fuel materials: coal, wood, natural gas, oil. Do not stop heating the reactor, when the temperature reaches nearly 250 degree Celsius, waste tyre will be transferred to oil gas.
2. The liquid oil will be cooled by condenser from oil gas and then collected by oil tank. Third, the exhaust gas which can not be cooled in normal pressure will be recycled to heat the reactor. In this way, you can not only saving energy, but also protecting environment.
3. Smoke produced by processing the tyres can achieve national emission standard through dual desulfurization and dusting removal device.
4. After you get oil, the temperature will be low, at this time, carbon black will be discharged automatically.
Last, when the temperature falls to 100 degree Celsius, worker could put steel wire hook to reactor to take steel wire out. After all these steps, you can start another batch.
| Technical parameter of Waste tyres recycling plant cost | ||||
| No. | Items | Contents | ||
| 1 | Equipment type | DY-1-6 | DY-1-8 | DY-1-10 |
| 2 | Raw material | Waste tyre | Waste tyre | Waste tyre |
| 3 | Structural form | Horizontal rotation | Horizontal rotation | Horizontal rotation |
| 4 | 24-hour Capacity | 6 ton | 8 ton | 10 ton |
| 5 | Oil yield | 2.7-3.3ton | 3.6 -4.4ton | 4.5 -5.5ton |
| 6 | Operating pressure | Normal | Normal | Normal |
| 7 | Material of pyrolysis Reactor | Q245R | Q245R | Q245R |
| 8 | Thickness of pyrolysis Reactor | 16mm | 16mm | 16mm |
| 9 | Rotate speed of pyrolysis Reactor | 0.4turn/minute | 0.4turn/minute | 0.4turn/minute |
| 10 | Total power | 19KW | 19KW | 19KW |
| 11 | Mode of cooling | Water cooling | Water cooling | Water cooling |
| 12 | Cooling area of condenser | 100sqm | 100sqm | 100sqm |
| 13 | Kind of transmission | Internal gear drive | Internal gear drive | Internal gear drive |
| 14 | Noise dB(A) | ≤85 | ≤85 | ≤85 |
| 15 | Size of Reactor(D×L) | 2200×6000 | 2200×6600 | 2600×6600 |
| 16 | Working form | Intermittent operation | Intermittent operation | Intermittent operation |
| 17 | Delivery time | 20days | 20days | 20days |
| 18 | Weight | 27T | 30T | 35T |
| Prepared by customer about Waste tyres recycling plant cost | |||
| No. | Item | Consumption | |
| 1 | Coal(for choice) | 500kg/day | |
| 2 | Wood(for choice) | 800kg/day | |
| 3 | Natural gas(for choice) | 100-150kg/day | |
| 4 | Oil(for choice) | 300-350kg/day | |
| 5 | Electricity | 244kwh/day | |
| 6 | Water(recycled) | 60㎥ /month | |
| 7 | Total power | 19kw | |
| 8 | Land area | 35m*15m | |

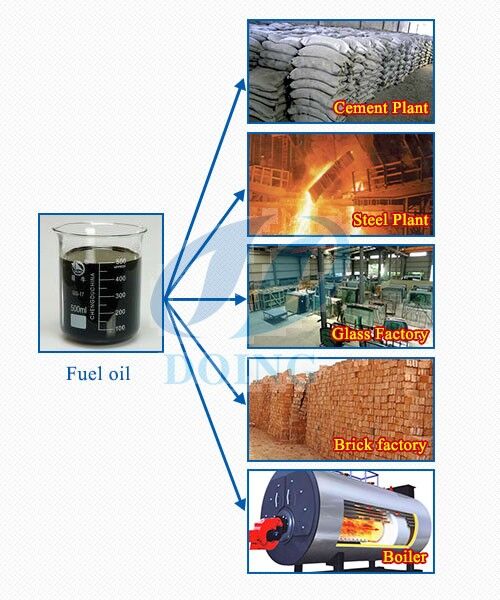

The final product of Waste tyres recycling plant costis fuel oil ,carbon blacke ,steel wire .The fuel oil can used to power plant factory,glass factory,cement factory,boiler factory.The carbon black can used to conveyour ban ,black nulon bag ,rubber additive ,steel wire can directly selling in the market .

Fuel oil application
