Tyre pyrolysis oil distillation process plant

Date:2017-08-30/ Tyre to Diesel Plant/ Chat online/ Give me a price

Factory direct sale contact number

Chat Online

Leave a Message

Features
Technical Data
Application

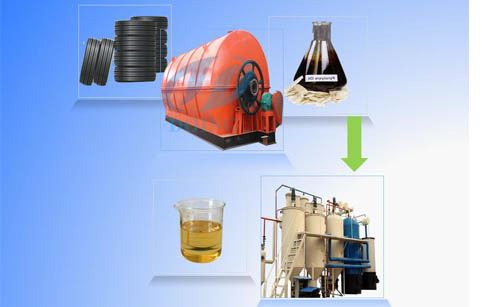

Tyre pyrolysis oil plant

The tyre pyrolysis plant adopts the new green pyrolysis technology. Through the use of the tyre pyrolysis oil plant, waste tyres can be effectively converted to fuel oil, carbon black and steel wire. The oil from tyres pyrolysis plant can be widely used as fuel oil in industries such as steel and iron and boiler factories, ceramics, power or chemical industries etc. And it can be used for generators to get electricity.

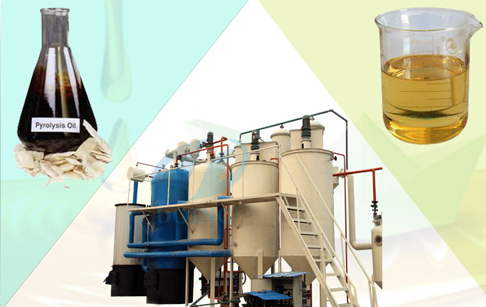

Tyre pyrolysis oil distillation process plant

Doing Tyre pyrolysis oil distillation Process plant can treat a variety of waste engine oil, waste tyre pyrolysis oil and waste plastic pyrolysis oil and get high quality diesel oil. The diesel oil got from this waste tyre pyrolysis oil distillation process plant in high quality and can be used for tractors, trucks, generators, boilers, agricultural vehicles etc.

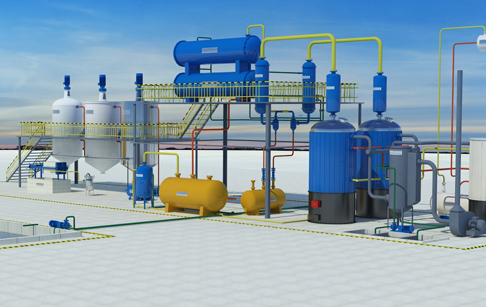

3 D picture of waste tyre oil distillation plant

The oil output of waste tyre oil distillation process plant is about 85%, the rest includes 10% bitumen and 5% excess gas. The excess gas will recycle to furnace as the auxiliary heating fuel.

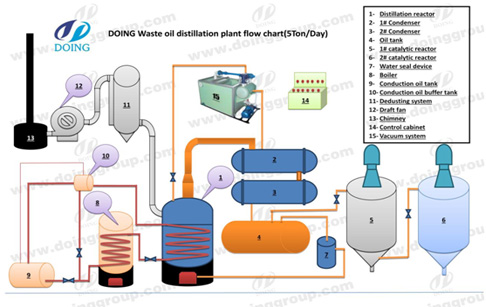

The Tyre pyrolysis oil distillation process plant with a high yield project is easy to operate:

Tyre pyrolysis oil distillation process plant

1. Feeding waste oil into reactor, and start heating;
2. Control temperature to ensure get good quality diesel, and cooling oil gas to get diesel;
3. Pump diesel to odor removal and color removal systems automatically;
4. Get good quality diesel.

Doing Tyre pyrolysis oil distillation process plant is the latest technology in China pyrolysis industry, we refreshed the design to save heating time and increase oil yield.

Tyre pyrolysis oil distillation process plant

Technical parameter of tyre pyrolysis oil distillation process plant
Items	Contents
Model	DY-5t, DY-10t, DY-20t, DY-50t…
Raw material	motor oil, waste tyre oil, plastic crude oil
Structure form	Vertical (easy cleaning and maintenance)
Heating method	Indirect heating to prolong the machine service life
Operating pressure	Constant pressure
Heating material	Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate	95%
Material of reactor	4 reactor with different material
Thickness of reactor	18mm
Mode of cooling	Recycled water cooling
Power in total	20 Kw
Service life	average 7 years
Land area	180㎡

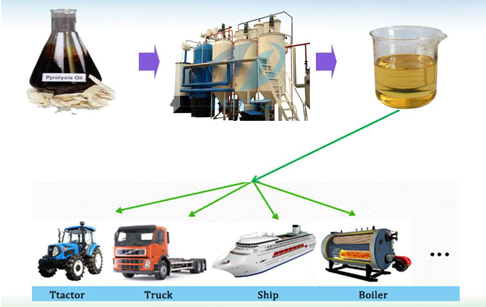

Tyre pyrolysis oil distillation process plant final product diesel application

The final diesel oil of waste pyrolysis distillation process plant can used for tractors, trucks, ships and generator etc:
