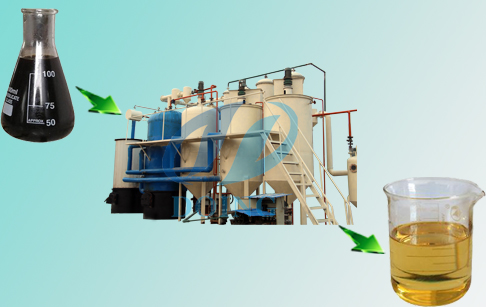

Crude oil distillation machine

The crude oil distillation process is the chemical process used by refineries and other facilities to convert crude oil into useful products such as liquefied petroleum gas (LPG), gasoline or gasoline, kerosene, jet fuel, diesel and fuel oil.

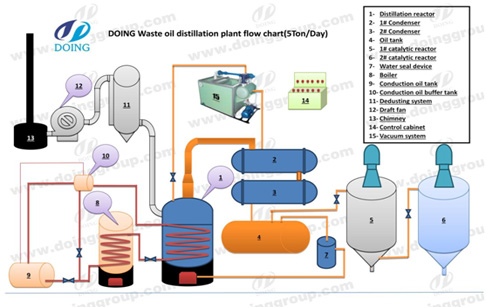

Crude oil distillation process

First of all, the thermal oil is poured into the heat-conducting system for preheating.
Second, crude oil is poured into the reactor and the reactor is heated. The crude oil in the reactor was distilled at high temperature, and the residue in the crude oil was distilled off. After filtration, clean gas oil and gas were obtained.
Once again, light oil and gas enter the condensing system under the action of high and low pressure, and is liquefied when it is cooled and falls into the oil tank.
Then, the exhaust gas wastes from pyrolysis in the furnace are treated, filtered, and discharged to the environmental protection department's assessment standards.
Finally, the filtered residue, asphalt, is distilled and discharged from the furnace.

Crude oil distillation machine Technical parameter

Technical parameter of crude oil distillation machine
Items	Contents
Model	DY-5t, DY-10t, DY-20t, DY-50t…

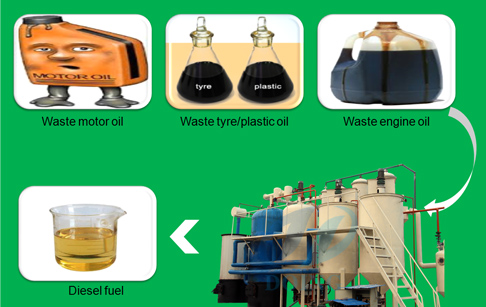

Raw material	motor oil, waste tire crude oil, plastic crude oil
Structure form	Vertical (easy cleaning and maintenance)
Heating method	Indirect heating to prolong the machine service life
Operating pressure	Constant pressure
Heating material	Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate	95%
Material of reactor	4 reactor with different material
Thickness of reactor	18mm
Mode of cooling	Recycled water cooling
Power in total	20 Kw
Service life	average 7 years
Land area	180㎡
