Waste oil to diesel refinery plant

Conversion of waste oil The high - volume waste oils can be turned into valuable fuel products by refining and treating processes. Waste oil to diesel refinery plant - like fuels to be used in engines without disposing is very important 。

Here we mainly introduce our waste oil to diesel refinery plant, taking the 5D/T waste oil to diesel refinery plant as example.

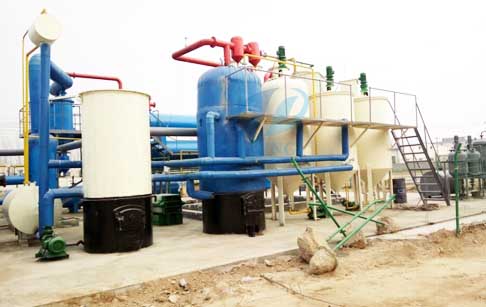

DOING 5T/D waste oil to diesel refinery plant is mainly composed of 4 reactors, cooling system, vacuum system, filtering system and de-dusting system. Our waste oil to diesel refinery plant can refine waste tire oil into diesel very efficiently, and at the moment it is the most energy-saving refinery equipment in the market.

Doing waste oil to diesel refinery plant have below characteristics:

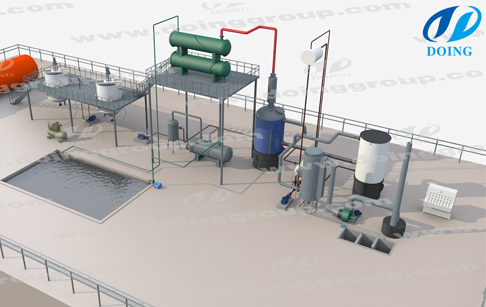

3 D picture of waste oil to diesel refinery plant

1. Automatic feeding and discharging systems, which makes it easy to operate and can greatly save manpower.

2. Totally sealed distillation reactor and distillation tower to avoid gas leakage and ensure no-pollution.

3. Latest hot air heating system, which can prolong the service life of the reactor for extra 1-2 years.

4. New-type tubular condensers, larger cooling area, better cooling effect and higher oil yield (the oil recovery rate can be as high as about 80%).

5. Equipped with safety valves, automatic alarming system, anti-explosion valve, which will guarantee 100% safety in the working process.

Technical parameter of waste oil to diesel refinery plant
Items	Contents
Model	DY-5t, DY-10t, DY-20t, DY-50t…
Raw material	waste oil( waste tire oil, plastic oil,waste engine oil,used motor oil,crude oil)
Structure form	Vertical (easy cleaning and maintenance)
Heating method	Indirect heating to prolong the machine service life
Operating pressure	Constant pressure
Heating material	Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate	95%
Material of reactor	4 reactor with different material
Thickness of reactor	18mm
Mode of cooling	Recycled water cooling
Power in total	20 Kw
Service life	average 7 years
Land area	180㎡

Waste oil to diesel refinery plant final product

Final Products	Applications
Diesel Oil (85%-90%)	Apply to tractors, trucks, ships, diesel oil generators, power generators, etc.
Slag (5%)	Recycle it into furnace to heat reactor.
Sysnas (5%)	Recycle it to heat the distillation system, storage the gas for heating, liquefied

Waste oil to diesel refinery plant

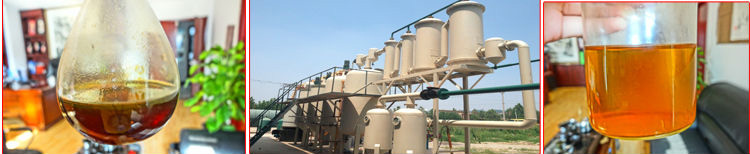

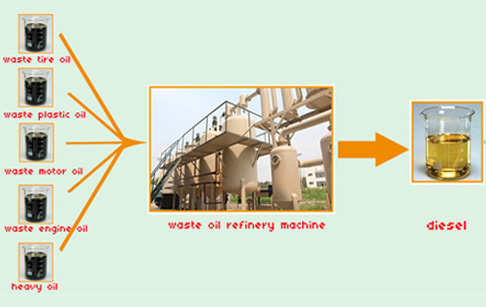

DOING waste oil to diesel refinery plant can purify waste tire oil, plastic oil, waste engine oil, the final diesel can be used for tractors, trucks, and diesel oil generators, ships etc.
