Glass crusher

Date:2016-06-28/ Auxiliary Equipment/ Chat online/ Give me a price

Factory direct sale contact number

Chat Online

Leave a Message

Features
Technical Data
Application

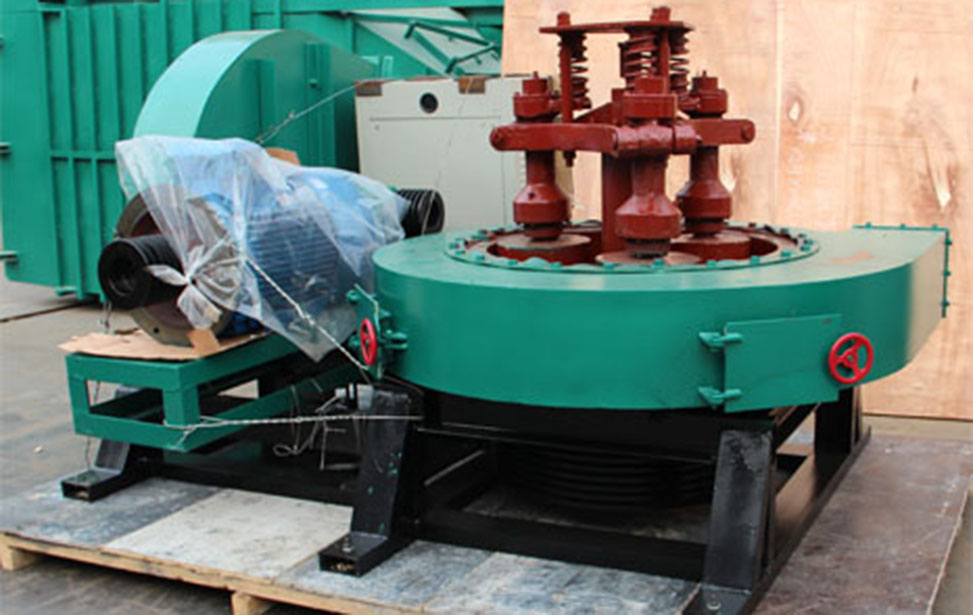

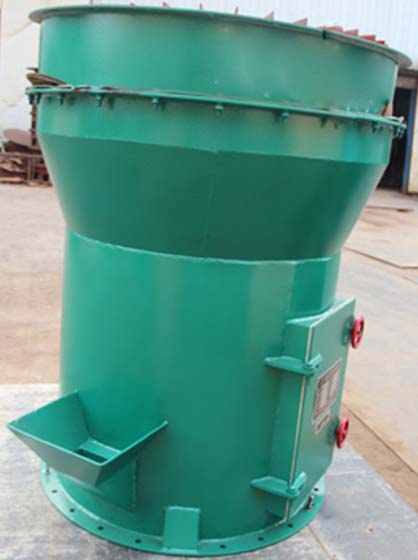

glass crusher

1. The glass crusher is made of high manganese steel which is more durable and the blade can replace easily.
2. Cone gear whole transmission-compact conformation, convenient installation, reducing dissipation of energy.
3. Isolation type cyclone powder collector. Effectively improve the efficiency and precision of choosing powder.
4. The observe door and air inlet volute is in the same surface,voiding the eddy current effect and reducing energy consumption.
5. Optimization design for grinding roller grinding ring of main-spring pressurization, high-wearing feature.
6. Internal thin oil lubrication system. Advanced and reliable, prolong service life.
7. Curved duct. Loss of the air volume is small, the liquidity of material is good and not easy plugging material.

Model	Grinding Roller			Grinding Ring		Feeding Size (mm)	Output size (mm)	Capacity (t/h)	Motor Power (kw)	Overall Dimension (mm)
Model	Numbers (pcs)	Diameter (mm)	Height (mm)	Outside Diameter (mm)	Height (mm)	Feeding Size (mm)	Output size (mm)	Capacity (t/h)	Motor Power (kw)	Overall Dimension (mm)
3R1410	3	140	100	495	100	<8	0.613-0.044	0.15-1.2	14.1	334022003200
3R2115	3	210	150	726	150	<15	0.613-0.044	0.28-1.8	28.2	448031003970
3R2615	3	260	150	865	150	<15	0.613-0.044	0.35-2.8	35.7	500041004850
3R2715	3	270	150	884	150	<15	0.613-0.044	0.40-3.4	42.7	505041504900
3R3015	3	300	150	965	150	<15	0.613-0.044	0.45-3.7	55	520042004950
4R3016	4	300	160	990	160	<20	0.613-0.044	0.6-4.5	55	525050005500
4R3216	4	320	160	1073	160	<25	0.613-0.044	1.0-5.2	72.5	770072008800
5R4119	5	410	190	1400	190	<30	0.613-0.044	2.0-9.0	157.5	790088009650

glass crusher sample

Glass crusher are designed to grinding the stones whose Moh's hardness below 9.3 and moisture below 6% of all kinds of inflammable and explosive mineral materials processing such as limestone, calcite, dolomite, barite, gypsum, talc, calcium carbonate,bentonite and so on.Its final product size is 1.6 mm to 0.038 mm,which is very fine. Glass crusher is the ideal powder making equipment in electric power industry, metallurgy industry, chemical industry, building construction, coal industry, fireproofing materials making industry and some others.
