Metal crusher

Date:2016-06-28/ Auxiliary Equipment/ Chat online/ Give me a price

Factory direct sale contact number

Chat Online

Leave a Message

Features
Technical Data
Application

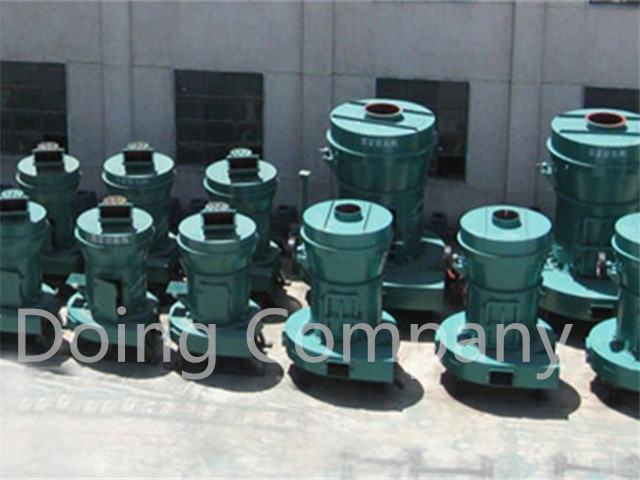

metal crusher

1. Comparing with the Raymond mill, this metal crusher is assembled with pressurized spring to improve the mill eiciency. its capacity increases by 10%-20% under the same power condition, and compression force of rollers to material improve 800-1200kgf under the force of high-pressure spring.

2. Metal crusher are made of high quality hard alloy and is wear resisting. Customers also can choose other high abrasive materials, such as 65Mn, Mn13Cr2Cr and chrominum cast steel, according to the actual material.

3. High quality speed regulating motor is adopted to adjust the rotation speed of analyzer, and the output size also can be adjusted accordingly. The variable frequency motor also can be used.

4. Blade analyzer is adopted to analysis the powder of 0-400 mesh effectively.

Model	3R1410	3R1815	3R2115	3R2615	3R2715	3R3016	4R2715	4R3016	4R3216	5R4119	6R4427
（mm）Max Feeding Size	10-15	10-15	10-15	15-20	15-20	20-25	15-20	20-25	20-25	20-30	20-50
（mm）Output Size	0.250-0.045mm/60-325mesh
（T）Capacity	1-10	1.3-14	1.5-16	41694	2-29	3-34	2-31	3-35	3-39	5-66	10-140
（r/min） Centre Axis Speed	280	195	160	162	162	160	162	160	140	103	82
（mm）Grinding ring Outer Dia.	500	630	725	861	915	975	915	975	1073	1400	1750
(mm)Grinding roller Dia.	140	180	210	260	270	300	270	300	320	410	420
（mm）Roller and ring height	100	150	150	150	150	160	150	160	160	190	270
（kw）Main Motor	7.5	11	15	18.5	22	30	22	30	37	75	132
（kw）Blower Motor Power	5.5	7.5	11	18.5	18.5	22	18.5	22	30	75	132
(kw)Analyzer Motor Power	1.1	1.5	2.2	2.2	2.2	2.2	2.2	2.2	5.5	7.5	11

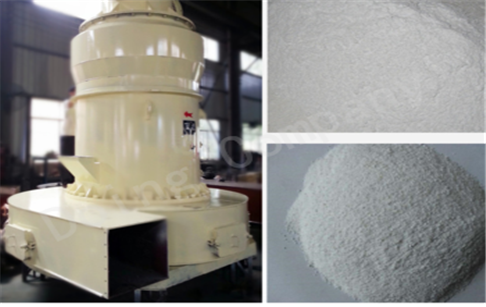

Metal crusher

Metal crusher is used cooperatively with waste tyre pyrolysis to fuel oil plant could processes the carbon black deeply and raise the value of the carbon black.
