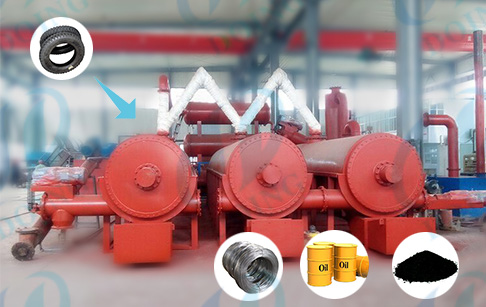

Continuous tyre pyrolysis system
Continuous tyre pyrolysis system

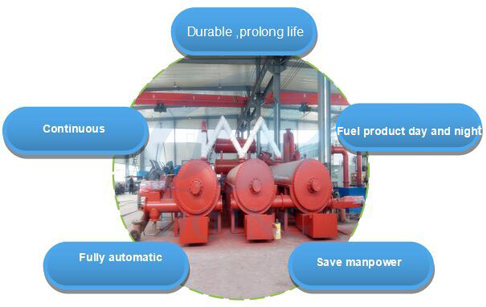

Continuous tyre pyrolysis system feature
2. High oil output rate 45%-55%, the rubber up to 60%.
3. Rapid condenser, we have 5 condensers, the cooling area up to 53 square meters, the area larger, the more oil u can get.
4. Large capacity: 10tons / 20ons / 30tons
5. Safety device, we have automatic alarm bells with pressure gauge, If pressure gauge more than the pressure, bells will ring.
6. Environmental protection, no pollution, no smell.
7. 6—8 years life, 3 years warranty
Continuous tyre pyrolysis system technical data
| No. | Item | Specifications | ||||||
| 1 | Model | DY-C-10 | DY-C-20 | DY-C-30 | DY-C-50 | DY-C-60 | DY-C-80 | DY-C-100 |
| 2 | Cpacity | 10T/D | 20T/D | 30T/D | 50T/D | 60T/D | 80T/D | 100T/D |
| 3 | Power | 35Kw | 50Kw | 65Kw | 80Kw | 90Kw | 105Kw | 120Kw |
| 4 | Working type | Continuous | ||||||
| 5 | Reactor deisgn | Mutiple reactors (The quantity and size depends on the raw material condition) | ||||||
| 6 | Rotating | Internal rotating | ||||||
| 7 | Cooling system | Recycled waster cooling | ||||||
| 8 | Reactor material | Q245R/Q345R boiler plate | ||||||
| 9 | Heating method | Indireact hot air heating | ||||||
| 10 | Heating fuel | Fuel oil/gas | ||||||
| 11 | Feedstock | Waste tire/plastic/rubber | ||||||
| 12 | Output | Fuel oil, carbon black | ||||||

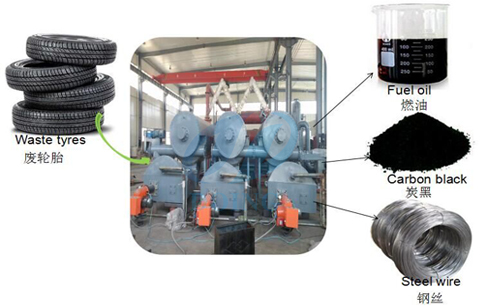

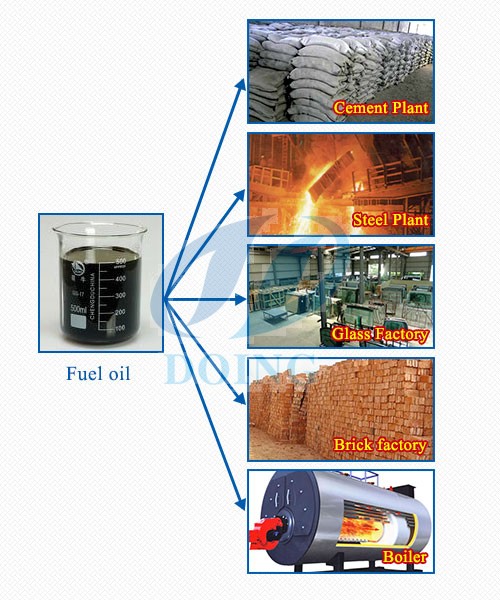

Continuous tyre pyrolysis system final product application
Continuous tyre pyrolysis system of Doing can get Fuel oil (45% to 52%) ,Carbon black (30% to 35%) ,steel wire (12%-15%),this product can use widely in inductries.
Continuous tyre pyrolysis system of Doing can get Fuel oil (45% to 52%) ,Carbon black (30% to 35%) ,steel wire (12%-15%),this product can use widely in inductries.
