Fully automatic pyrolysis plant:

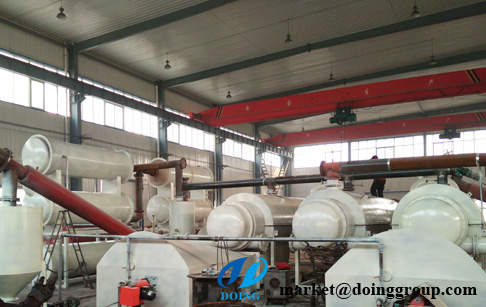

Fully automatic pyrolysis plant

DOING group is the first rate manufacturer for fully automatic pyrolysis plant. We are specialized in pyrolysis unit and others waste regeneration machines. We can supply different solutions according different requirements of our customers. Our plants have been exported into over 30 countries and regions; it is popularized with its low price, high quality, long service life, easy operation and simply maintenance.

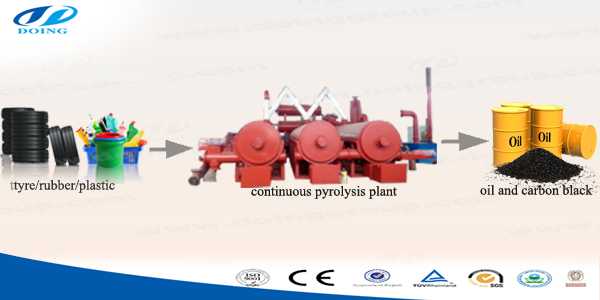

Fully automatic pyrolysis plant includes waste tyre pretreatment systm, continuous pyrolysis system with continuous feeding and discharge system controled by PLC system. The main part is the continuous pyrolysis system. Fully automatic pyrolysis plant is for processing waste tires into fuel oil and carbon black for recycle use. Due to continuous feeding and discharge system, the Fully automatic pyrolysis plant can keep working without stop, thus to save energy and time. Also PLC control system makes much less labour cost.

Fully automatic pyrolysis plant technical data:

No.	Item	Specifications
1	Model	DY-C-10	DY-C-20	DY-C-30	DY-C-50	DY-C-60	DY-C-80	DY-C-100
2	Cpacity	10T/D	20T/D	30T/D	50T/D	60T/D	80T/D	100T/D
3	Power	35Kw	50Kw	65Kw	80Kw	90Kw	105Kw	120Kw
4	Working type	Continuous
5	Reactor deisgn	Mutiple reactors (The quantity and size depends on the raw material condition)
6	Rotating	Internal rotating
7	Cooling system	Recycled waster cooling
8	Reactor material	Q245R/Q345R boiler plate
9	Heating method	Indireact hot air heating
10	Heating fuel	Fuel oil/gas
11	Feedstock	Waste tire/plastic/rubber
12	Output	Fuel oil, carbon black

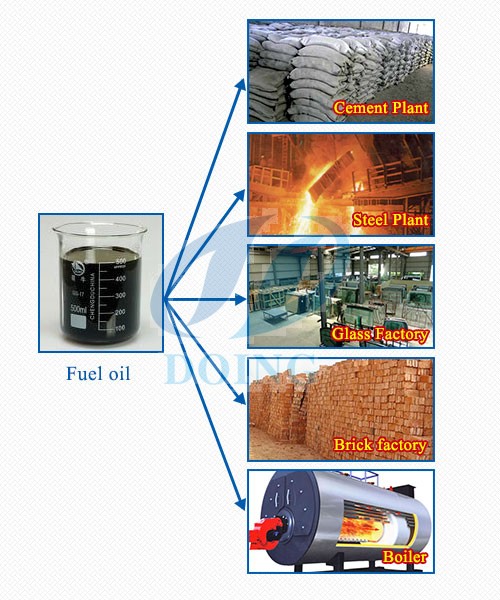

Fully automatic pyrolysis plant final product and application:
After processed by fully automatic pyrolysis plant, you can get fuel oil and carbon black. The following are the function of products from Fully automatic pyrolysis plant.
