Recycled waste tyre to black oil plant

Date:2016-11-08/ Pyrolysis Plant/ Chat online/ Give me a price

Factory direct sale contact number

Chat Online

Leave a Message

Features
Technical Data
Application

tyre oil ,tire oil ,tyre recycling to oil machine

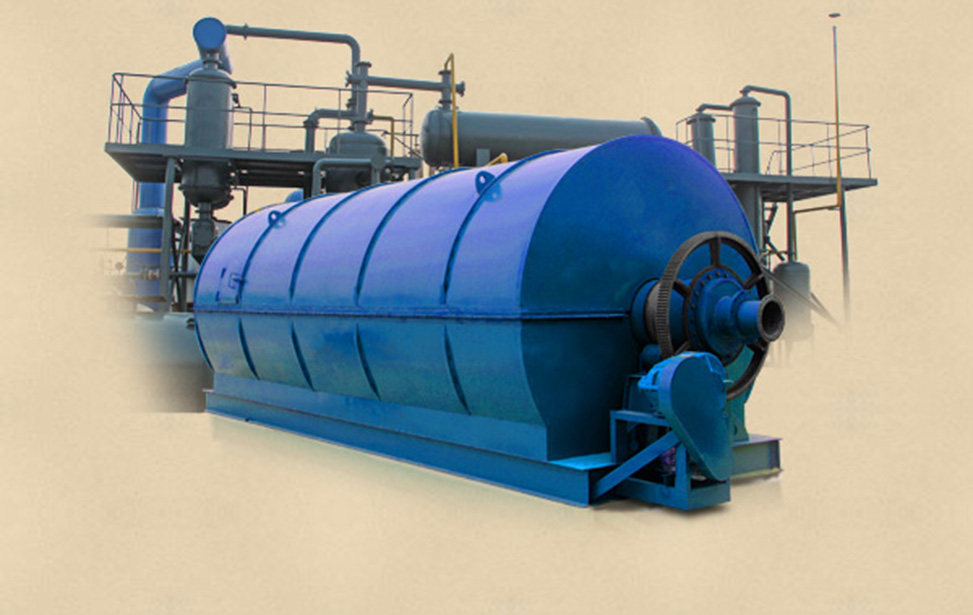

Recycled waste tyre to black oil plant

Configuration of recycled waste tyre to black oil plant :
1. Reactor: Q245R boiler plate, 16mm thickness.
2. Heating way: wood, coal, crude oil, gas
3. Cooling System: Recycled water cooling way.
4. Negative pressure device: guarantee the machine safety, no gas running outside
5. Safety device: automatic alarm, automatic valves
6. Slagging device: Auto slagging system.
7. Final product: black oil(45%-52%), carbon black(30％-35％）, steel wire(10％-15％).
Customer Service:
Our service including:12months warranty; Erecting the plant; Commissioning the plant; Training the operator; Providing of spare parts; whole life’s technical consultant of the recycled waste tyre to black oil plant.

Technical parameter of recycled waste tyre to black oil plant
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste tyre/plastic	Waste tyre/plastic	Waste tyre/plastic
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about recycled waste tyre to black oil plant
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

waste tire recycling to oil plant ,tyre to oil plant

Black oil from recycled waste tyre to black oil plant application

Now, more and more people know this project, and DOING GROUP recycled waste tyre to black oil plant used by waste tyre and plastic recycling companies with owned a good reputation around the world.

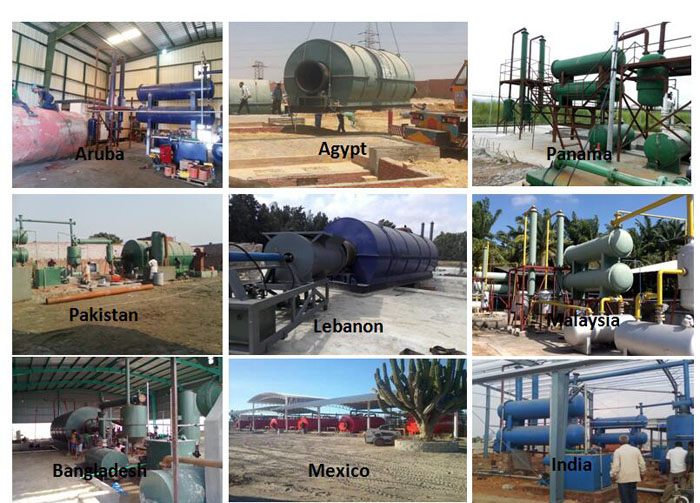

Project Case:
Albania, Italy, Poland, Romania, Pakistan, Mexico, Haiti, Iran, Malaysia, Ecuador, India, etc.
