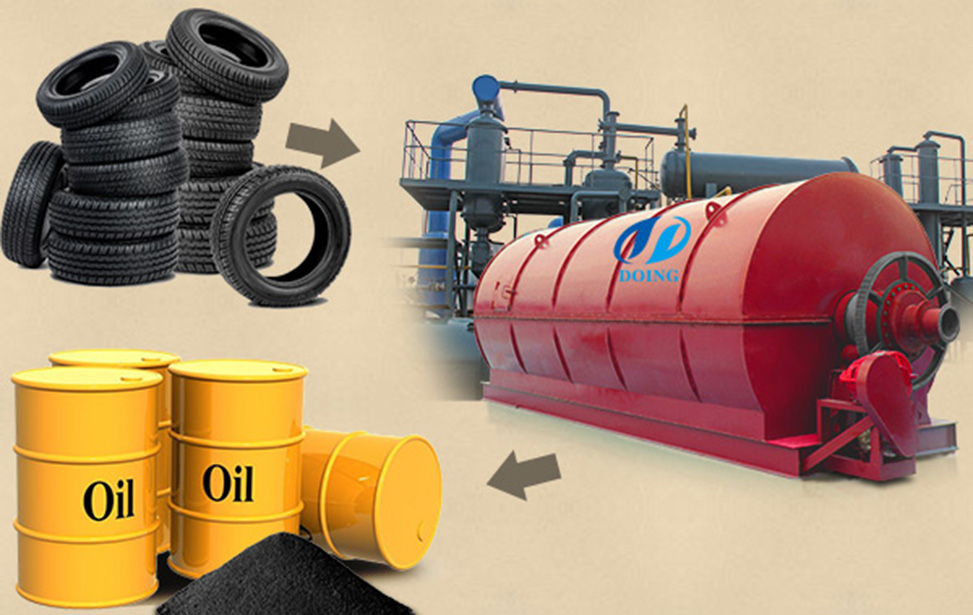

Waste tyre and plastic pyrolysis plant

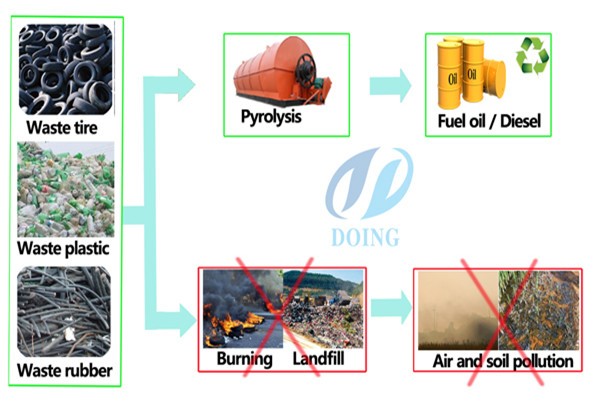

DOING COMPANY is specialized in manufacturing waste tyre and plastic pyrolysis plant. Waste tyre/plastic pyrolysis process: Under high temperature, the waste tyre in a sealed space will produce oil gas, oil gas go through the sealed pipe into the following condensers, by recycling water, cooling down oil gas to oil, we call this oil crude oil.
Crude oil is the main products of tyre/plastic pyrolysis plant, widely used in industrial area, for example used for heating boiler and other kinds of equipment.
Besides crude oil, there have carbon black, steel wire and little waste gas.
Carbon black: after a further process can make a kind of fuel, widely used in the areas like cement factory, steel factory, glass factory and so on for heating, also can be used for heating pyrolysis plant.
Steel wire: you can sell directly, and in some country, steel can sell a quite good price.
Waste gas: can recycle to furnace through gas pipe for heating reactor, this can save cost, save energy, reduce pollution.

Technical parameter of waste tyre and plastic pyrolysis plant
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste tyre/plastic	Waste tyre/plastic	Waste tyre/plastic
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about waste tyre and plastic pyrolysis plant
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

Waste tyre/plastic pyrolysis plant can be used by below factory:
1. The waste tyre and plastic pyrolysis plant is widly used by recycling center, waste plastic recycling company, and Eco-protect company.
2. The final product from waste tyre/plastic pyrolysis plant is fuel oil, diesel, carbon black and steel wire. Fuel oil can be as fuel to heating, such as heavy industries, cement factory, steel milling factory, glass making factory, boiler factory etc. Diesel oil can be used for tractors, trucks, and diesel oil generators. Carbon black can sell to cement factory, also can pellet them to heating the machine.
