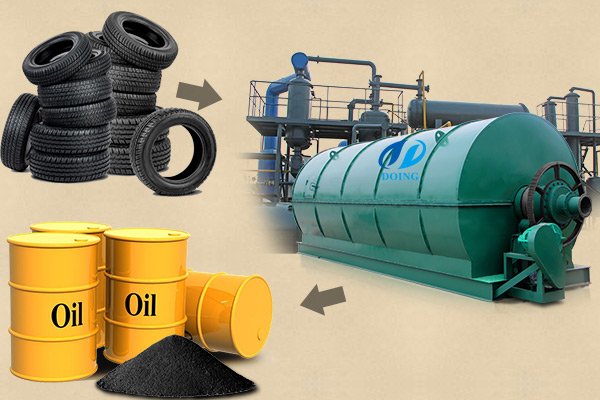

Low investment used tyre pyrolysis to oil plant

Low investment used tyre pyrolysis to oil plant working process:
1. Use auto-feeder to feed the waste tyres into reactor automatically, seal the feeding inlet door tightly.
2. Heat the reactor by burning the following fuel material: coal, wood, natural gas, or fuel oil in the combustion system. The reactor will be heated slowly, when the temperature reaches around 250 degree Celsius, the oil gas will be formed.
3. After processed by low investment used tyre pyrolysis to oil plant, the oil gas will go to the cooling system to be liquefied. The gas which cannot be liquefied under normal pressure will be designed to go back to combustion system through safety device instead of the fuel material to burn the reactor, which is environmental friendly and can save you much energy.
4. After finishing oil collecting, the temperature of reactor will be down, while, carbon black can be discharged automatically at the same time.
5. When the temperature falls down to 100 degree Celsius, workers can open the door of reactor to discharge the steel wire.
6. Start another batch working.

Final products of Low investment used tyre pyrolysis to oil plant:
1. Used tyre oil 45%-55%
A. Sell directly. B. Turn to diesel and gasoline by oil distillation machine. C. Fuel materials.
2. Carbon black 30% -35%
A. Sell directly. B. Reprocessing to fine carbon by carbon black refining machine.
3. Steel wire 10%-15%
A. Sell directly. B. Deep processing to steel bloom by hydraulic press-packing.

Technical parameter of low investment used tyre pyrolysis to oil plant
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	used tyre	used tyre	used tyre
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about low investment used tyre pyrolysis to oil plant
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

DOING low investment used tyre pyrolysis to oil plant is a good investment for recycling company and energy organization. DOING GROUP pyrolysis machine with a high quality machine, experienced manufacturer and good service, you will never regret. If you have any interest, please contact us. We will serve for you anytime.

The low investment used tyre pyrolysis to oil plant is used to convert the waste tyre /waste plastic to fuel oil, the low investment used tyre pyrolysis to oil plant is used deal with the waste plastic/tyre.
The pyrolysis oil is a good energy for heating, the pyrolysis oil can be used in cement factory, brick factory, glass factory, boiler and so on especially in steel factory.
