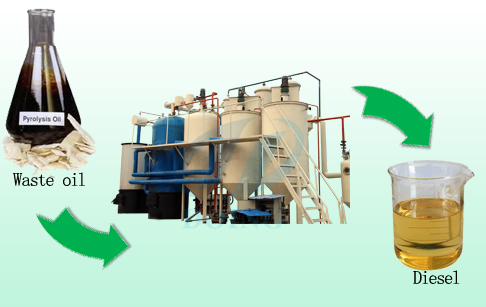

Pyrolysis oil to diesel distillation plant
Pyrolysis oil to diesel distillation plant
The pyrolysis oil can be used for diesel generator, boiler, trucks, tractors and agricultural vehicles etc.

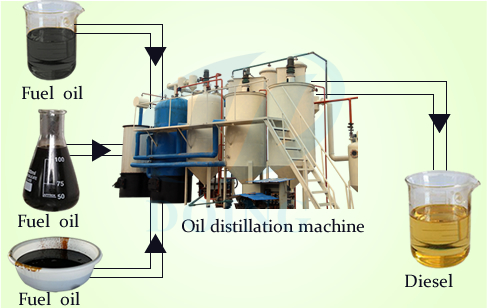

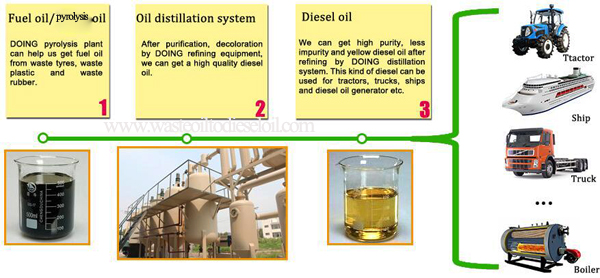

Pyrolysis oil to diesel distillation plant working process
Our pyrolysis oil to diesel distillation plant has some advantages.
1. Vertical reactor with indirectly heating system is very efficient and reasonable. It is easy to clean the bottom of reactor.
2. Indirect heating will prolong the service life of reactor
3. After finished one batch oil distillation, we will pump the oil to odor and color removal tank. Then can start to pump fuel oil to reactor for another batch. So we say it is continuous working.
4.Better oil quality.The oil color can be darker or lighter according to customers’ requirement.
Till now we have successfully installed pyrolysis oil to diesel distillation plant different countries and won good feedback from our customer.

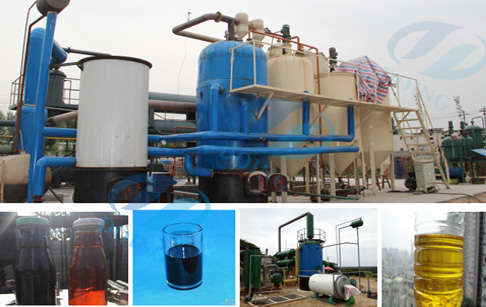

Pyrolysis oil to diesel distillation plant
| Items | Contents |
| Raw material | pyrolysis oil, tyre oil, Plastic oil, Raw oil, waste engine oil, waste motor oil |
| Structure form | Vertical (easy maintenence,easy slugging) |
| Model | DY-DP |
| 24-hour capacity | 5t-100t… |
| Operating pressure | Constant pressure |
| Heating material | Coal, charcoal, fuel gas, fuel oil |
| oil out-put oil rate | Around 85% (Depend on the material) |
| Material of reactor | Q345R boiler plate |
| Thickness of reactor | 16mm |
| Reactor rotate speed | 0.4-0.8 turn/minute |
| Mode of cooling | Water cooling |
| Power in total | 4.0-8.0kw |

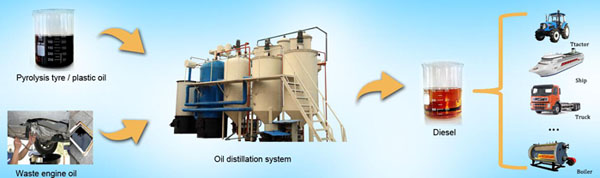

Diesel can be directly used to tractors,trucks,diesel oil generators etc.
Diesel application
1.Design the installation drawings according to your site
2.For each set of waste engine oil to diesel machine, one engineer will be sent toguide your installation, test the machine and train your workers.
3.1 year warranty, engineers available to service at any time
4.Periodical call visit, to make sure there is no problem of the equipment
5.Design specific maintenance program according to different situation of yourplant
Henan DOING Mechanical Equipment CO., Ltd is a professional manufacturer and supplier of pyrolysis oil to diesel distillation plant with advanced distillation technology. Our plant can ensure you high oil yield and safety; you will get great profit from this project. Welcome your inquiry and visiting.
