Waste engine oil to diese fuel refinery plant

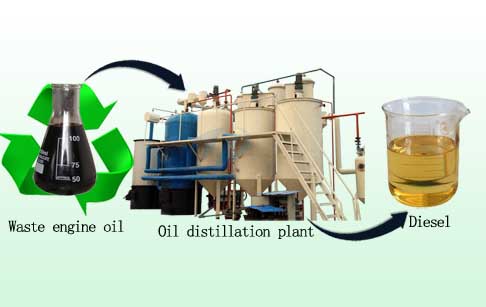

Waste engine oil to diese fuel refinery plant is used for refining waste oil to clean diesel. Unique design and outstanding functions can help customer create more profit. This Waste engine oil to diese fuel refinery plant is matched with pyrolysis plant. It is widely applied in waste oil management industry.

waste engine oil to diesel fuel refinery plant

Waste engine oil to diese fuel refinery plant

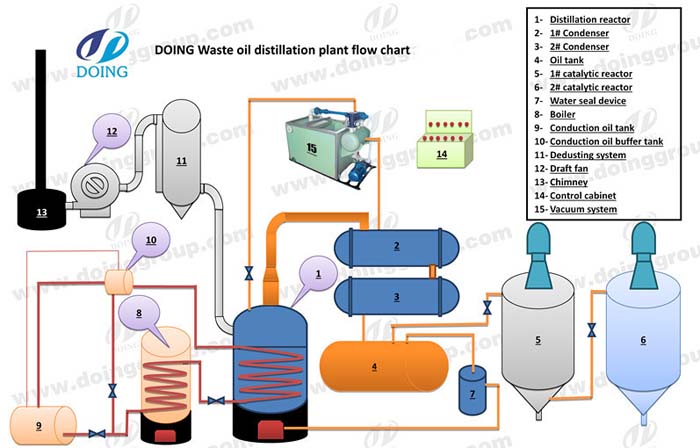

Waste engine oil to diese fuel refinery plant working process

Waste engine oil to diese fuel refinery plant

1.    Prepare waste crude oil
2.    Heating for distillation
3.    Cooling
4.    Chemical process for cleaning the distillation oil
5.    Collect final diesel product

Waste engine oil to diese fuel refinery plant advantage

Safety:
Safety is the most important factor in the whole process. We had successfully researched some safety devices which ensure Waste engine oil to diese fuel refinery plant work safely.

Safety valves, alarming device and the pressure gauge etc.
We also have oil-water separator which can stop the oil gas recycle to the reactor, which could avoid the accident.
High degree of automation: feed the waste oil, crude oil automatically, to pump oil automatically.

Energy saving:

Well sealing for heating system, no gas leak and saving fuel.
Continuous feeding with automatic feeder, no gas leak.
Recycling of exhaust gas and scientific fire channel design can save energy and thereby reducing costs.

Environmental friendly:

The whole process is all sealed, won’t release any gas harmful to human and environment.
Well water dedusting system can avoid black smoke.

Waste engine oil to diese fuel refinery plant technical data:

Brand	DOING
Raw Material	waste engine oil /tyre oil/fuel oil/ plastic oil
Structure form	vertical type
Capacity	5-100ton…
Power	30KW
Plant Weight	20 tons
Out-put oil rate	Average 85%
Operation Pressure	Normal pressure, negative
Heating system	tubular heater
Cooling Form	Water cooling
Instillation mode	With foundation
Machine space	200㎡

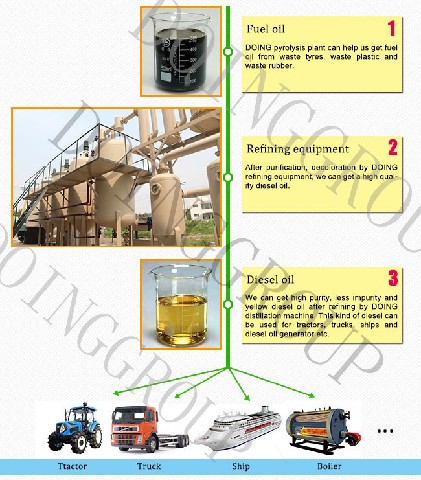

Waste engine oil to diese fuel refinery plant are widely used in transferring waste oil into diesel. The raw materials can be waste fuel oil, waste engine oil, crude oil, lubricant oil, etc. This is a sunrise project, which turn waste into energy.

Diesel application:
